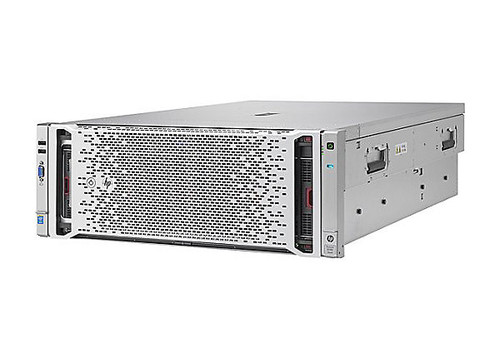

HPE ProLiant DL580 Gen9 High Performance - rack-mountable - Xeon E7-8890V3 (793312-B21)
Does your business demand fast insights, support for increased number of users and uncompromised availability? The HP ProLiant DL580 Gen9 Server is the HP four socket (4S) enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies. The DL580 Gen9 Server has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications. Whether needed for highly virtualized or cloud based deployments, with intelligence and simplicity of automated management with HP OneView and HP iLO 4 your business can achieve agile and lower cost infrastructure management.
- Rock-solid availability and reliability
The HP ProLiant DL580 Gen9 Server provides increased system availability and less need for service with advanced error recovery, error diagnosis, and built-in redundancy; all features of the DL580 Server Comprehensive Fault Management and Diagnostics.
- Agile infrastructure management for accelerating IT service delivery
With HP ProLiant DL580 Gen9 Server, HP OneView provides converged management for automation simplicity across servers, storage and networking. Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
Storage Controller
Type1 x RAID - PCI Express 2.0 x4
Controller Interface Type - SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name - Smart Array P830i with 4GB FBWC
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size4 GB
Graphics Controller
Graphics Processor - Matrox G200
Video Interfaces - VGA
Networking
Interface (Bus) Type - PCI Express 2.0 x8
Ethernet Ports - 2 x 10 Gigabit Ethernet
Ethernet Controller - HP FlexFabric 534FLR-SFP+
Data Link Protocol - 10 Gigabit Ethernet
Remote Management Controller - Integrated Lights-Out 4
Features - Wake on LAN (WoL), ACPI support, PXE support
Compliant Standards - IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x
Expansion / Connectivity
Bays 5 (total) / 5 (free) x hot-swap 2.5" SFF
Slots 96 (total) / 80 (free) x DIMM 240-pin 4 (total) / 0 (free) x CPU 5 (total) / 5 (free) x PCIe 3.0 x16 - full-length, full-height 4 (total) / 4 (free) x PCIe 3.0 x16 - half-length, full-height ( x8 mode ) 1 (total) / 0 (free) x FlexibleLOM 1 (total) / 1 (free) x microSD Card
Interfaces 1 x serial 2 x VGA ( 1 front, 1 rear ) 1 x HP iLO 8 x USB 2.0 ( 2 front, 4 rear, 2 internal ) 2 x LAN (10Gigabit Ethernet) - SFP+
Miscellaneous
FeaturesAdministrator password, power-on password, keyboard password, serial port I/O control, USB port control
Compliant StandardsACPI 2.0, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438
Power
Device Type - Power supply - hot-plug
Power Redundancy - Yes
Installed Qty 4
Max Supported Qty 4
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Provided 1500 Watt
Operating System / Software
OS Certified SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux
