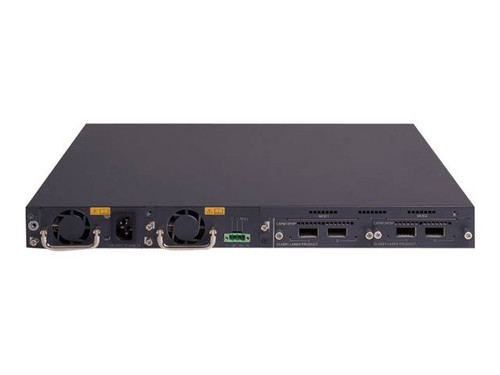

These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks, or in the core layer of SMB networks. The HP 5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual-stack support, the series provides a migration path from IPv4 to IPv6 and has hardware support for IPv6. Designed for increased flexibility, these switches are available with 24 or 48 Gigabit Ethernet ports. Power over Ethernet (PoE) and non-PoE models are available with optional GbE and 10GbE expansion capability. The all-fiber model with dual power supplies is ideal for applications that require the highest availability.
- Storm restraint
It allows limitation of broadcast, multicast, and unknown unicast traffic rate to cut down on unwanted broadcast traffic on the network. Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to bi-directional selected traffic on a per-port, per-VLAN, or whole switch basis. Powerful QoS feature: creates traffic classes based on ACLs, IEEE 802.1p precedence, IP, DSCP or ToS precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority queuing (SP), weighted round robin (WRR), SP+WRR, weighted fair queuing (WFQ), and weighted random early discard (WRED). Traffic policing: supports Committed Access Rate (CAR) and line rate.
- Friendly port names
They allow assignment of descriptive names to ports. Remote configuration and management: is available through a secure Web browser or a command-line interface (CLI). Manager and operator privilege levels enable read-only (operator) and read-write (manager) access on CLI and Web browser management interfaces. Command authorization leverages HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail. Secure Web GUI: provides a secure, easy-to-use graphical interface for configuring the module via HTTPS.
- Auto-MDIX
It automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports. Flow control: using standard IEEE 802.3x, it provides back pressure to reduce congestion in heavy traffic situations. Jumbo packet support: supports up to 9216-byte frame size to improve performance of large data transfers.
- Separate data and control paths
It keeps control separated from services and keeps service processing isolated; increases security and performance. External redundant power supply: provides high reliability. Smart link allows 50 ms failover between links. Spanning Tree/MSTP, RSTP provides redundant links while preventing network loops. Rapid Ring Protection Protocol (RRPP) connects multiple switches in a high-performance ring using standard Ethernet technology; traffic can be rerouted around the ring in less than 50 ms, reducing the impact on traffic and applications.
- 32K MAC addresses
It provides access to many Layer 2 devices. IEEE 802.1ad QinQ and Selective QinQ increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network. GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs. IEEE 802.1ad QinQ increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network.
