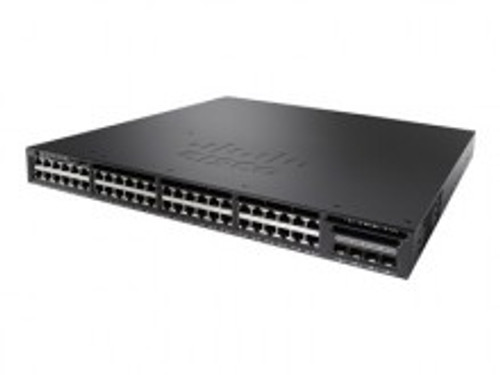

he Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
Product Overview
â— Integrated wireless controller capability with:
â—¦ Up to 40G of wireless capacity per switch (48-port models)
â—¦ Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)
â— 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
â— 24 and 48 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps (multigigabit) Cisco UPOE and PoE+ models with EEE[1]
â— Five fixed-uplink models with four Gigabit Ethernet, two 10 Gigabit Ethernet, four 10 Gigabit Ethernet, eight 10 Gigabit Ethernet, or two 40 Gigabit Ethernet Quad Small Form-Factor Pluggable Plus (QSFP+) ports
â— 24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for shallow depth cabinets in enterprise, retail, and branch-office environments
â— Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
â— Dual redundant, modular power supplies and three modular fans providing redundancy[2]
â— Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy
â— Full IEEE 802.3at (PoE+) with 30W power on all ports in 1 rack unit (RU) form factor
â— Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor
â— IEEE 802.3bz (2.5GBASE-T and 5GBASE-T) to go beyond 1 Gbps with existing Category 5e and Category 6
â— IEEE 802.1ba Audio Video Bridging (AVB) built in to provide a better AV experience, including improved time synchronization and quality of service (QoS)
â— Software support for IPv4 and IPv6 routing, multicast routing, modular QoS, Flexible NetFlow (FNF) Version 9, and enhanced security features
â— Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
â— Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
Table 1 shows the Cisco Catalyst 3650 Series configurations.
Table 1. Cisco Catalyst 3650 Series Configurations
| Models | Fixed Uplinks | Total 10/100/1000 Ethernet Ports | Default AC Power Supply | Available PoE Power |
| WS-C3650-24TS | 4 x Gigabit Ethernet with Small Form‑Factor Pluggable (SFP) | 24 | 250 WAC | - |
| WS-C3650-48TS | 48 |
| WS-C3650-24PS | 24 PoE+ | 640 WAC | 390 W |
| WS-C3650-48PS | 48 PoE+ |
| WS-C3650-48FS | 48 PoE+ | 1025 WAC | 775 W |
| WS-C3650-24TD | 2 x 10 Gigabit Ethernet with SFP+ and 2 x 1 Gigabit Ethernet with SFP | 24 | 250 WAC | |
| WS-C3650-48TD | 48 | | |
| WS-C3650-24PD | 24 PoE+ | 640 WAC | 390 W |
| WS-C3650-24PDM | 24 PoE+ | Fixed 640 WAC | 390 W |
| WS-C3650-48PD | 48 PoE+ | 640 WAC | 390 W |
| WS-C3650-48FD | 48 PoE+ | 1025 WAC | 775 W |
| WS-C3650-8X24PD | | 24 PoE+ (with 8 100-Mbps and
1-, 2.5-, 5-, and 10-Gbps ports) | 715 WAC | 435 W |
| WS-C3650-12X48FD | | 48 PoE+ (with 12 100-Mbps and
1-, 2.5-, 5-, and 10-Gbps ports) | 1100 WAC | 660 W |
| WS-C3650-48TQ | 4 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP | 48 | 250 WAC | |
| WS-C3650-48PQ | 48 PoE+ | 640 WAC | 390 W |
| WS-C3650-48FQ | 48 PoE+ | 1025 WAC | 775 W |
| WS-C3650-48FQM | 48 PoE+ | Fixed 975 WAC | 775 W |
| WS-C3650-8X24UQ | 24 UPOE (with 8 100-Mbps and 1‑, 2.5-, 5-, and 10-Gbps ports) | 1100 WAC | 820 W |
| WS-C3650-12X48UQ | 48 UPOE (with 12 100-Mbps and 1‑, 2.5-, 5-, and 10-Gbps ports) | 1100 WAC | 660 W |
| WS-C3650-12X48UR | 8 x 10 Gigabit Ethernet with SFP+ or 8 x Gigabit Ethernet with SFP | 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) | 1100 WAC | 660 W |
| WS-C3650-12X48UZ | 2 x 40 Gigabit Ethernet with QSFP+ | 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) | 1100 WAC | 660 W |
Fixed Uplinks
All Cisco Catalyst 3650 Series Switches have fixed, built-in uplink ports. Customers can choose from five types of uplink ports at the time of the switch purchase:
â— Four Gigabit Ethernet with Small Form-Factor Pluggable (SFP)
â— Two 10 Gigabit Ethernet with SFP+ and two 10 Gigabit Ethernet with SFP or four Gigabit Ethernet with SFP
â— Four 10 Gigabit Ethernet with SFP+ or four Gigabit Ethernet with SFP
â— Eight 10 Gigabit Ethernet with SFP+ or eight Gigabit Ethernet with SFP
â— Two 40 Gigabit Ethernet with QSFP+
The SFP+ interface supports both 10 Gigabit Ethernet and Gigabit Ethernet ports. Refer to Table 1 for a description of the basic switch models and the corresponding uplink ports. Refer to Table 2 for a description of the various uplink port interface options.
Table 2. 1 and 10 Gigabit Fixed Uplink Configurations
| | Interface Options |
| Fixed Uplink Ports | 10 Gigabit Ethernet SFP+ Ports | Gigabit Ethernet SFP Ports |
| 4 x Gigabit Ethernet fixed uplink ports | 0 | 4 |
| 4 x Gigabit Ethernet or 2 x 10 and 2 x 1 Gigabit Ethernet fixed uplink ports | 2 | 0 |
| 0 | 4 |
| 2 | 2 |
| 4 x Gigabit Ethernet and 4 x 10 Gigabit Ethernet fixed uplink ports | 4 | 0 |
| 0 | 4 |
| 2 | 2 |
| 3 | 1 |
| 1 | 3 |
| 8 x Gigabit Ethernet or 8 x 10 Gigabit Ethernet fixed uplink ports | 8 | 0 |
| 0 | 8 |
| Any combination of 10 Gigabit Ethernet and remaining 1 Gigabit Ethernet uplink ports |
Dual Redundant Modular Power Supplies and External RPS2300
The Cisco Catalyst 3650 Series Switches support dual redundant power supplies (see Figure 2). The switch ships with one power supply by default, and the second power supply can be purchased at the time of ordering the switch or at a later time. If only one power supply is installed, it should always be in power supply bay 1. The switch also ships with three field-replaceable fans.
Table 3 shows the different power supplies available in these switches and available PoE power.
Table 3. Switch Models and Corresponding Default Power Supplies
| Models | Default Power Supply | Available PoE Power | Support Secondary Power Supply |
| 24-port data switch | PWR-C2-250WAC | - | Yes |
| 48-port data switch | Yes |
| 24-port PoE switch | PWR-C2-640WAC | 390 W | Yes |
| 48-port PoE switch | Yes |
| 48-port full PoE switch | PWR-C2-1025WAC | 775 W | Yes |
| 24-port mini PoE switch | Fixed 640 WAC | 390W | No, but supports RPS 2300 |
| 48-port mini PoE switch | Fixed 975 WAC | 775W | No, but supports RPS 2300 |
| 24-port Multigigabit PoE switch | PWR-C1-715WAC | 435 W | Yes |
| 24-port Multigigabit UPOE switch | PWR-C1-1100WAC | 820 W | Yes |
| 48-port Multigigabit full PoE switch | | |
| 48-port Multigigabit UPOE switch | 660 W | Yes |
The multigigabit switches support a different set of power supplies than the non-multigigabit switches. In addition the PWR-C1-350WAC is not supported on the multigigabit switches. In addition to the power supplies listed in Table 3, a 640W DC power supply is available at the time of order or as a spare on all non-multigigabit switch models. The DC power supply also delivers PoE capabilities for maximum flexibility (refer to Table 4 for available PoE budget with DC power supplies). Customers can mix and match the AC and DC power supplies in the two available power supply slots. Any of these power supplies can be installed in any of the switches.
Table 4. Available PoE with DC Power Supply
| Model | Number of DC Power Supplies | Total Available PoE Budget |
| 24-port or 48-port PoE Switch (non-multigigabit) | 1 | 390 W |
| 2 | 780 W |
| 24-port PoE Switch (Multigigabit) | 1 | 160 W |
| 2 | 600 W |
| 48-port PoE Switch (Multigigabit) | 1 | 0 W |
| 2 | 440 W |
Power over Ethernet Plus (PoE+)
The Cisco Catalyst 3650 Series Switches support both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at standard), which provide up to 30 W of power per port. PoE removes the need for wall power to each PoE-enabled device and eliminates the cost for additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. The 3650 Series can provide a lower TCO for deployments that incorporate Cisco IP phones, Cisco Aironet® wireless LAN (WLAN) access points, or any IEEE 802.3at-compliant end device. Table 5 shows the power supply combinations required for different PoE needs.
Table 5. Minimum Power Supply Requirements for Full PoE and PoE+
| | 24-Port PoE Switch | 48-Port PoE Switch |
| PoE on All Ports (15.4 W per port) | One PWR-C2-640 WAC | One PWR-C2-1025WAC or Two PWR-C2-640 WAC |
| PoE+ on All Ports (30 W per port) | One PWR-C2-1025WAC or Two PWR-C2-640 WAC | Two PWR-C2-1025 WAC |
Cisco Universal Power over Ethernet (Cisco UPOE)
Cisco UPOE is a breakthrough technology, offering the following services and benefits:
â— 60W per port to enable a variety of end devices such as Samsung VDI client, BT IP turret systems in trading floors, Cisco Catalyst compact switches in retail and hospitality environments, personal Cisco TelePresence® systems, and physical access control devices
â— High availability for power and guaranteed uninterrupted services, a requirement for critical
applications (e911)
â— Lower OpEx by providing network resiliency at lower cost by consolidating backup power into
the wiring closet
â— Faster deployment of new campus access networking infrastructures by eliminating the need for a power outlet for every endpoint
The Cisco UPOE capability is available only on select multigigabit models.
Table 6 shows the power supply requirements for Cisco UPOE.
Table 6. Power Supply Requirements for Cisco UPOE
| | 24-Port Multigigabit Cisco UPOE Switch | 48-Port Multigigabit Cisco UPOE Switch |
| Cisco UPOE (60W per port) on all (24-port switch) or max. 29 ports (48-port switch) | One 1100W and one 715W power supplies or two 1100W power supplies | Two 1100W power supplies |
Cisco Catalyst Multigigabit Technology
Cisco Multigigabit Ethernet is a unique innovation to the new Cisco Catalyst Ethernet access switches. With the enormous growth of 802.11ac and new wireless applications, wireless devices are promoting the demand for more network bandwidth. This creates a need for a technology that supports speeds higher than 1 Gbps on all cabling infrastructure. Cisco multigigabit technology allows you to achieve bandwidth speeds from 1 Gbps through 10 Gbps over traditional Category 5e (Cat 5e) cabling or above. In addition, the multigigabit ports on select Cisco Catalyst switches support Cisco UPOE, which is increasingly important for next-generation workspaces and Internet of Things (IoT) ecosystems.
Cisco multigigabit technology offers significant benefits for a diverse range of speeds, cable types, and PoE power. The benefits can be grouped into three different areas:
â— Multiple speeds: Cisco Catalyst Multigigabit Technology supports autonegotiation of multiple speeds on switch ports. The supported speeds are 100 Mbps, 1 Gbps, 2.5 Gbps, and 5 Gbps on Cat 5e cable and up to 10 Gbps over Cat 6a cabling
â— Cable type: The technology supports a wide range of cable types, including Cat 5e, Cat 6, and Cat 6a or above
â— PoE power: The technology supports PoE, PoE+, and Cisco UPOE for all the supported speeds and cable types
Cisco Catalyst 3650 Mini Switches
The Cisco Catalyst 3650 Series adds new mini switches to the existing 3650 family of switches. These switches are less than 12” deep and quieter than the existing 3650 switches, making them perfect to deploy in tight wiring cabinets, racks, or user spaces where depth of the switch is a concern. You can avoid replacing the cabinets or mounting the switch at an angle and as a result reduce downtime to the network. These switches enable the same uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency as the existing 3650 switches. They come in 24- and 48-port 10M/100M/1000M switch SKUs (WS-C3650-24PDM and WS-C3650-48FQM) and support all the same features as the existing 3650 switches except that they come with fixed fans, fixed power supplies, and support for external RPS2300 for redundancy. These PoE switches support both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at standard), providing up to 30W of power for 12 ports for a total of 390W on the 24-port model and up to 30W of power for 24 ports for a total of 775W on the 48-port model. The 24-port switch has 2x1 Gigabit Ethernet SFP and 2x10 Gigabit Ethernet SFP+ uplinks; the 48-port switch has 4x10 Gigabit Ethernet SFP+ uplinks to support any high-bandwidth application. These switches support stacking and can stack with each other or the existing 3650 switches using the same Cisco StackWise-160 technology. The 3650 mini and 3650 use the same software and thus can be deployed and managed using the same policies, configuration, and so on as the existing 3650 switches. Some use cases for the 3650 mini are the following:
Small Offices and Branches
Many small branches and satellite offices where there are few employees do not have larger wiring closets because of space constraints. A typical office like this has smaller cabinets and would need a switch that can serve few employees, provide PoE support, can manage wired-wireless networks, and applies the same consistent policies as a bigger branch or office. Because of its less than 12” depth, lower noise, and support for 10G uplinks along with stacking, advanced security, and wired-wireless convergence, the 3650 mini is the perfect switch for this type of space.
Education
The 3650 mini switch extends access to labs, classrooms, and other training rooms from the central/floor distribution rooms, reducing cost of cabling and providing superior quality of service with enhanced security, wired-wireless convergence, and enterprise network features. Because of its shallow depth and lower noise, these switches are ideally suited for classrooms or confined areas.
Retail
A typical retail outlet needs to serve customers at multiple sales points, each with a POS machine, access points, phone, printer, video display with network, and some PoE powering. These retail outlets connect to the access router that connects them to the outside network and typically need switches that fit in shallow depth cabinets. Because of the 12” depth of these switches along with advanced security and networking features, they can help retailers efficiently utilize space and save on real estate cost.
Benefits
Converged Wired plus Wireless Access
The Cisco Catalyst 3650 Series is a standalone and stackable access switching platform that enables wired plus wireless
